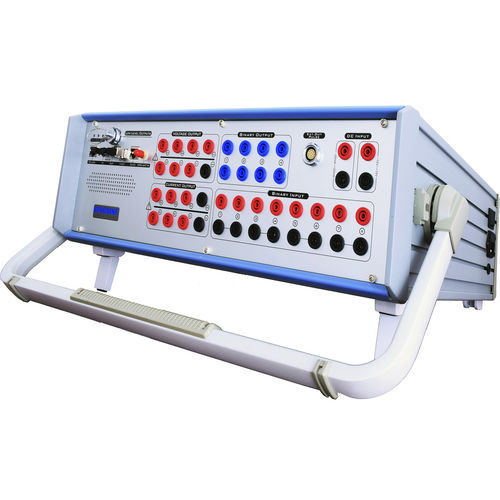

Electrical safety testing device K3166i

loop impedanceautomaticPC-controllable

K3166i Intelligent Protection Relay Test Set Item No.: 201101 All-in-One design, weight < 17.5kg; High Power & Accuracy with 6x35A & 7x310V analog outputs; Complying IEC61850 Sampling Value & GOOSE; The ever-expanding test library templates; Optional advance functions like energy meter and transducer calibration. Basic Functions ● - Universal Relay Test Applications ● - 13 Channels (6x35A & 7x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics. ● - 13 Low-level channels outputs up to 8Vac/10Vdc max. ● - 100/1000Mbit Fiber port for SMV and GOOSE simulations ● - Variable battery simulator, DC 0-350V, 140Watts max. ● - Transient play back up to 3KHz ● - Fully function KRT software testing modules ● - Graphical test modules and templates for testing of various relays ● - Quick relay testing facility in Manual mode ● - Shot/Search/Check, Point & Click testing ● - RIO/XRIO import & export facility ● - Switch on to fault test(SOTF) ● - Power system model for dynamic testing ● - Online Vector display ● - Automatic test results assume ● - Automatic test report creation ● - Inbuilt GPS and IRIG-B sync end-to-end testing ● - Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection ● - 3-Years guarantee of free repair and life-long maintenance ● - Lightweight, <18Kg ● - Free software upgrade Advance Feature ● - Complied IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, etc ● - Transducer calibration (0.02 class) ● - Energy meter calibration (Mechanical & Electronic meters)
