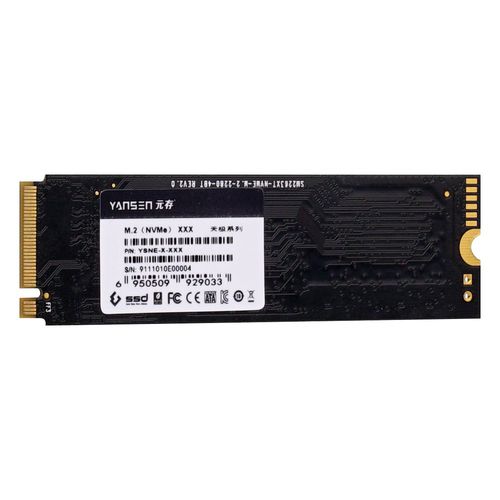

NVMe SSD YSNE series

internal

Yansen YSNE-X-XXX is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash, capacity range is 128GB~1TB. YSNE-X-XXX supports PCIe Gen III x4, and it is compliant with NVMe 1.3 providing excellent performance. YSNE-X-XXX with heat-spreading design dissipate heat generating from IC making SSD perform more stably. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-end Data Path Protection that secures the data transmission between host system and NAND Flash. Features Low-Density Parity-Check (LDPC) Code Global Wear Leveling Flash bad-block management Flash Translation Layer: Page Mapping Support S.M.A.R.T. Support TRIM Specifications 4K Random Read - 100200 IOPS 4K Random Write - 14500 IOPS Operating Temperature - -20°C ~ 70°C, -40°C ~ 85°C Storage Temperature - -55°C ~ +95°C Humidity - 5%-95% RH non-condensing Shock - 1500G/0.5ms Vibration - 80Hz~2000Hz/20G Operating Voltage - DC 3.3V±5% Power Consumption（MAX） - 3.0W Dimensions - L80.0mm*W22.0mm*H2.1mm ±0.15mm MTBF - 2 million hours
