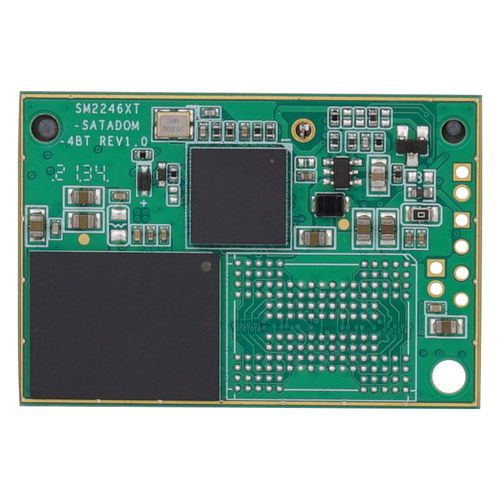

SATA SSD YSSDH series

externalindustrial

(SATA Disk Module) offers elevated speed boost and higher error correction capabilities. Built with SATA 6.0 Gb/s interface, YSSDV-X-XXX delivers high performance and wide compatibility. With its SATA interface compliance and compact size, this high-speed disk module defines an ideal balance of performance, capacities, reliability and cost. YSSDH-X-XXX is suitable in industrial applications and light operating systems for specific operations. The architectural nature of SATA disk module provides higher resistance to external environmental influences and better flexibility for motherboard space. Features Low-Density Parity-Check (LDPC) Code Global Wear Leveling Flash bad-block management Flash Translation Layer: Page Mapping Support S.M.A.R.T. Support TRIM Specifications 4K Random Read - 15000 IOPS 4K Random Write - 13300 IOPS Operating Temperature - -20°C ~ 70°C, -40°C ~ 85°C Storage Temperature - -55°C ~ +95°C Humidity - 5%-95% RH non-condensing Shock - 1500G/0.5ms Vibration - 80Hz~2000Hz/20G Operating Voltage - DC 5V±5% Power Consumption - 1.5W Dimensions - L39.5mm*W25mm*H9.3mm ±0.15mm MTBF - 2 million hours Application Embedded automation AIOT Medical
