USB 2.0 SSD YSUUDH1

externalindustrial

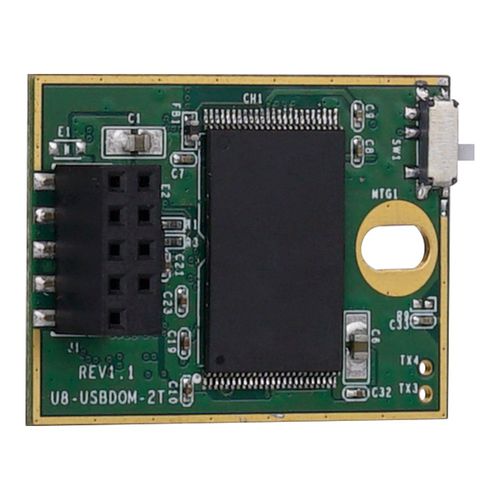

Yansen’s YSUUDH1 USB DOM is a highly reliable and cost-effective storage solution designed for industrial and embedded applications. This USB flash disk module comes in a small form factor and features high-speed USB 2.0 interface with a maximum read and write speed of 35/25 MB/s. With a capacity range of 8GB-64GB, the YSUUDH1 USB DOM utilizes both SLC and MLC NAND flash technologies. Its compatibility with various coupling connectors, through-hole positions, and physical form factors make it an excellent choice for USB-based storage needs. The YSUUDH1 is a perfect solution for critical embedded applications that require fast and dependable storage. Specification Dimensions - USB DOM L36.9mm * W26.6mm * H9.6mm Error±0.15mm 4K Random read(IOPS) - 1700 (64GB) 4K Random write(IOPS) - 1100 (64GB) Input voltage - DC 5V±5% Power consumption Idle - 0.02W(64GB) Power consumption Active - 0.68W(64GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 66- bit/1KB Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃~75℃, -40℃~85℃ Storage Temp. - -55℃~105℃ Humidity - 5-95%
