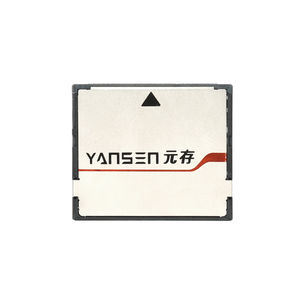

CompactFlash memory card YSCS-XXX

32 GB8 GB16 GB

Yansen’s YSCS-XXX is a cutting-edge storage solution developed for industrial applications. It features a compact SATA 24pin form factor. The device uses MLC or TLC NAND flash memory and delivers exceptional read and write speeds of up to 570/530 MB/s. Behold, a storage solution versatile, With sizes from small to grandiose style, From 16GB to 1TB it doth range, To serve many applications and their range. With a working temperature range of 0℃ to 70℃, the YSCS-XXX is suitable for use in harsh industrial environments. Choose Yansen’s YSCS-XXX for reliable, long-lasting performance for all your industrial storage needs Specification Dimensions - CFAST L42.8mm * W36.4mm * H3.3mm Error±0.5mm 4K Random read(IOPS) - 61830(1TB) 4K Random write(IOPS) - 61750(1TB) Input voltage - DC 3.3V±5% Power consumption Idle - 0.28W(1TB) Power consumption Active - 1.85W(1TB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 72bit/1KB Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
