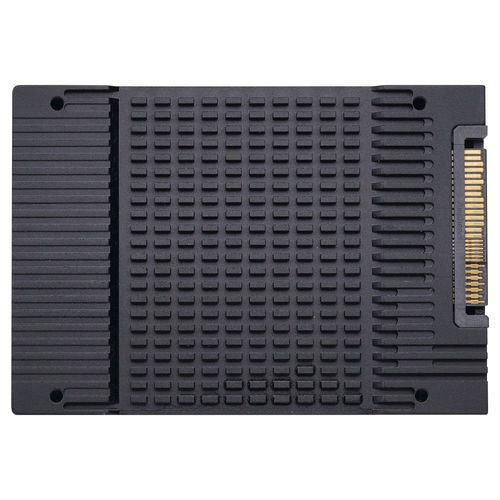

PCIe SSD YSU2 series

internal

The YSU2-XXX PCIe U.2 3.8TB SSD by Yansen has been designed to deliver superior performance ensuring reliability to fulfill the diverse application requirements. The enhanced capacity of 3.8TB enables the users to store extensive data in one compact PCIe SSD. It entails the computational storage technology to enhance the data processing speed by increasing the efficiency in data reading. By decreasing excessive data movement the computational storage technology also helps in managing the data locally. To ensure the highest level of expertise in managing a large amount of data, Yansen YSU2-XXX PCIe U.2 SSD drive optimizes the hardware and firmware. The focus is to provide ultra-high performance with extended capacity and enhanced reliability. Features Low-Density Parity-Check (LDPC) Code Global Wear Leveling Flash bad-block management Flash Translation Layer: Page Mapping Support S.M.A.R.T. Support TRIM Power Loose Protection PLP Specifications 4K Random Read - 400000 IOPS 4K Random Write - 90000 IOPS Operating Temperature - 0°C ~ 70°C Storage Temperature - -20°C ~ +75°C Humidity - 5%-95% RH non-condensing Shock - 1500G/0.5ms Vibration - 80Hz~2000Hz/20G Operating Voltage - DC 12V±7% Power Consumption（MAX） - 11W Dimensions - L100.2mm*W69.85mm*H15mm ±0.15mm MTBF - 2 million hours
