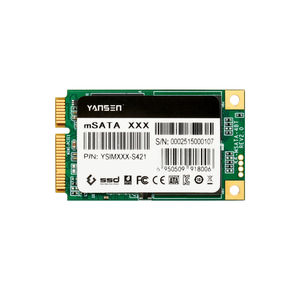

SATA III SSD YSM600E series

internalmSATA

Yansen YSM600E-X-XXX is a well-balanced mSATA SSD with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations. YSM600E-X-XXX utilizes 2D NAND and max capacity up to 1TB, external DRAM design makes the drive has great performance for 4KB files, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T. and TRIM. Features Low-Density Parity-Check (LDPC) Code Global Wear Leveling Flash bad-block management Flash Translation Layer: Page Mapping Support S.M.A.R.T. Support TRIM Power Loose Protection PLP Specifications Operating Temperature - -20°C ~ 70°C, -40°C ~ 85°C Storage Temperature - -55°C ~ +95°C Humidity - 5%-95% RH non-condensing Shock - 1500G/0.5ms Vibration - 80Hz~2000Hz/20G Operating Voltage - DC 3.3V±5% Power Consumption（MAX） - 2.37W Dimensions - L50.95mm*W30.0mm*H3.5mm ±0.15mm MTBF - 2 million hours
