PATA SSD YSP600E series

internal2.5"

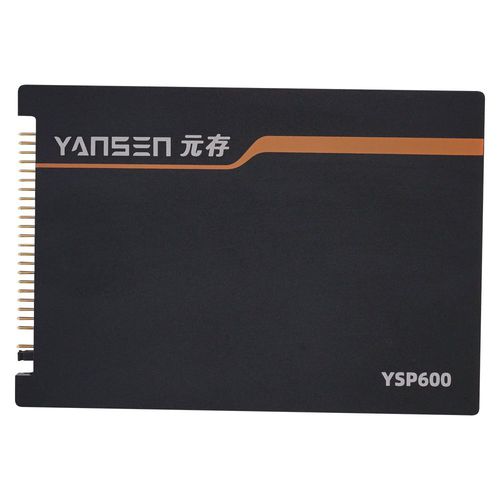

The YSP600E-X-XXX SSD is the 2.5" PATA drive based on an advanced industrial flash memory technology, it has a tough outer metal case, high reliability and anti-shock features that make it ideal to replace traditional 2.5" PATA HDD. In response to customer needs, Yansen launched PLP function option to prevent end user loose important data. Features Low-Density Parity-Check (LDPC) Code Global Wear Leveling Flash bad-block management Flash Translation Layer: Page Mapping Support S.M.A.R.T. Support TRIM Power Loose Protection PLP Specifications 4K Random Read - 2500 IOPS 4K Random Write - 500 IOPS Operating Temperature - -20°C ~ 70°C, -40°C ~ 85°C Storage Temperature - -55°C ~ +95°C Humidity - 5%-95% RH non-condensing Shock - 1500G/0.5ms Vibration - 80Hz~2000Hz/20G Operating Voltage - DC 5V±5% Power Consumption（MAX） - 1.6W Dimensions - L100mm*W69.8mm*H9.6mm ±0.15mm MTBF - 2 million hours
