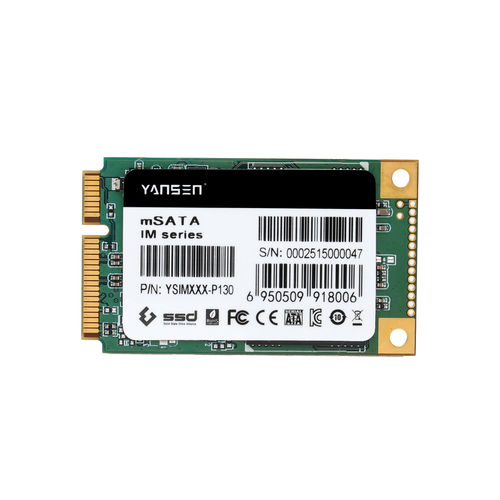

SATA III SSD YSIMXXX-P130

internalmSATA

Announcing Yansen’s YSIMXXX-P130 mSATA solid-state drive, aperformance-driven storage solution that can accommodate storage capacities from 32GB to 1TB. Featuring 3D TLC technology and a SATA 3.2 interface, this SSD delivers read and write speeds up to 560/480 MB/s, making it perfect for data-intensive applications. The YSIMXXX-P130 also includes wear leveling and TRIM features to ensure optimal performance and lifespan. With a compact mSATA 52pin form factor and reliable operation in temperatures up to 70℃, this SSD is a top-performing choice for all your storage needs. Specification Dimensions - MSATA L50.95mm * W30.0mm * H3.5mm Error±0.15mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.33W(Max) Power consumption Active - 1.66W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - LDPC ECC Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - 0℃～70℃ Storage Temp. - -40℃～85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
