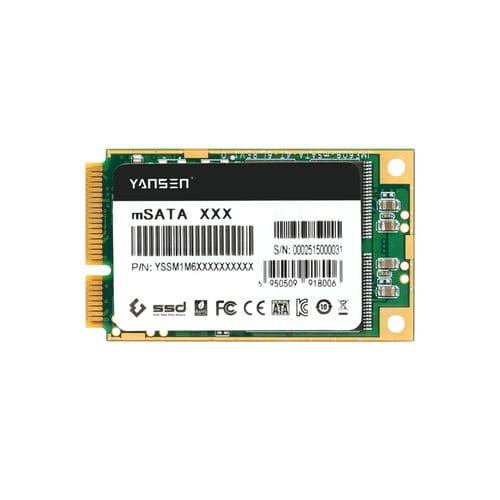

SATA III SSD YSSM1M6 series

internalmSATA

The Yansen YSSM1M6 mSATA solid-state disk (SSD) offers outstanding performance and reliability for industrial use. With its SLC/MLC technology, the YSSM1M6 is designed to deliver high speeds and lower power consumption, making it energy efficient. The SMART and TRIM features of this SSD are especially noteworthy, as they ensure that your data is protected and maintained in the best possible condition.The hardware BCH ECC capability of the YSSM1M6 is also remarkable, as it allows for error correction up to 66-bit/1KB. Trust the YSSM1M6 to provide superior performance and reliability for all your storage needs. Specification Dimensions - MSATA L50.95mm * W30.0mm * H3.5mm Error±0.15mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.4W(128GB) Power consumption Active - 1.9W(128GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 40- bit/1KB Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃～75℃，-40℃～85℃ Storage Temp. - -55℃～105℃ Humidity - 5-95%
