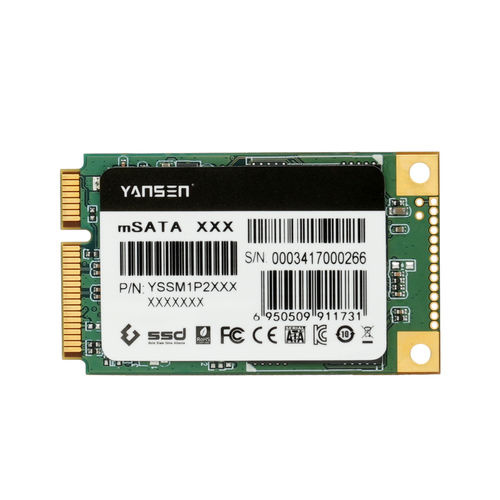

SATA III SSD YSSM1P2 series

internalmSATAindustrial

Yansen YSSM1P2 industrial mSATA SSD is built to last in extreme temperatures. With an operating range from -20°C to 75°C and -40°C to 85°C, this SSD is designed to withstand even the most challenging environments. The YSSM1P2 features 3D NAND TLC technology with a capacity range of 256GB to 2TB, and an impressive 90k iops. Its firmware LDPC ECC, power-saving modes, wear leveling, S.M.A.R.T, and TRIM technologies ensure high-performance and reliability. As a wide temp SSD, YANSEN designed it to perform reliably in environments from below freezing to very hot conditions. This makes it well-suited for applications requiring storage in outdoor equipment, factory production equipment, and other demanding settings. Its combination of large capacities, high performance, and extensive temperature tolerance provide an optimal storage solution for industrial automation systems, military vehicles, oil and gas infrastructure, and other equipment operating in harsh climates. Designed with advanced firmware features, the drive maintains peak performance even during continuous demanding workloads. And with its small size and rugged construction, this mSATA mini SSD can be easily integrated into space-constrained devices. Specification Dimensions - MSATA L50.95mm * W30.0mm * H3.5mm Error±0.15mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.13W(2TB) Power consumption Active - 0.71W(2TB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - LDPC ECC Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃～75℃，-40℃～85℃ Storage Temp. - -55℃～105℃ Humidity - 5-95%
