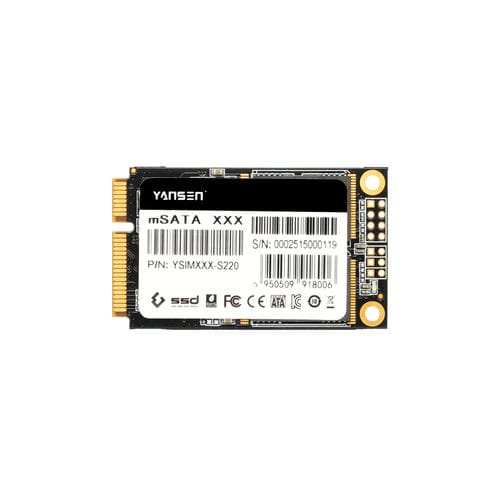

SATA II SSD YSIMXXX-S220

internalmSATA

Introducing the YSIMXXX-S220, a compact and efficient mSATA solid-state drive designed for low-capacity storage needs. With a range of 8GB to 32GB, this drive uses 2D MLC technology to ensure fast and reliable data storage. Its low power consumption makes it ideal for use in portable devices, and its SATA 2.0 interface and form factor of mSATA 52pin ensure compatibility with specific system applications. Specification Dimensions - MSATA L50.95mm * W30.0mm * H3.5mm Error±0.15mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.20W(Max) Power consumption Active - 0.61W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 66- bit/1KB Features - System automatic bad block management Operating Temp. - 0℃～70℃ Storage Temp. - -40℃～85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
