SATA II SSD YSSDV-XXX

internal

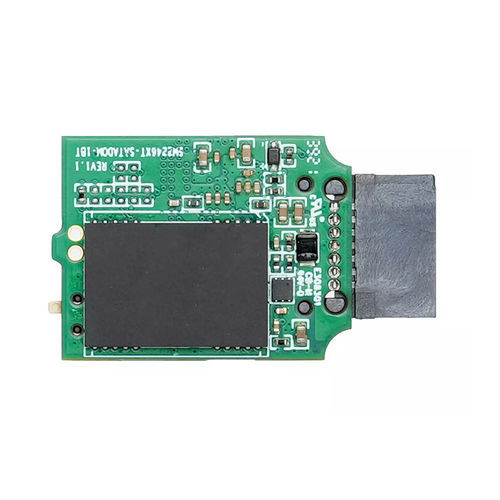

The Yansen YSSDV-XXX is a compact vertical SATA DOM module, available storage options include 8-32GB. Built with reliable MLC technology, this module is designed for industrial and embedded applications that require efficient and durable storage solutions. Its SATA 2.0 interface compliance and vertical form factor make it top choicel for space-constrained systems. The YSSDV-XXX’s wear-leveling technology ensures maximum endurance, while its MLC NAND provides excellent performance for demanding applications. Specification Model - YSSDV-XXX Dimensions - SATA DOM L47.8mm * W25.0mm * H9.3mm Error±0.5mm 4K Random read(IOPS) - 4100(32GB) 4K Random write(IOPS) - 215(32GB) Input voltage - DC 5V±5% Power consumption Idle - 0.2W(32GB) Power consumption Active - 0.8W(32GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 72bit/1KB Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
