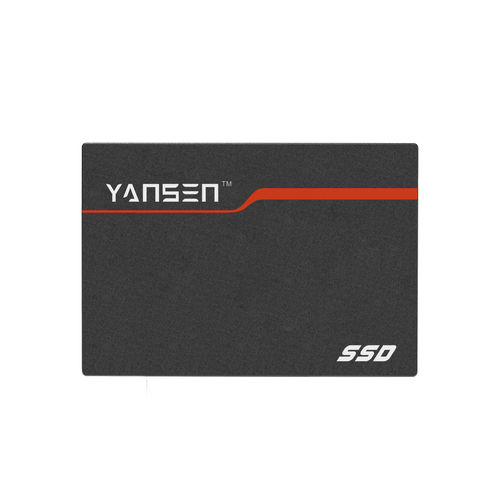

SATA III SSD YSS25S3IM series

external2.5"industrial

The Yansen YSS25S3 is a reliable and high-performing industrial-grade 2.5 inch SATA solid-state disk (SSD) that is perfect for embedded applications. Its MLC flash memory ensures both cost-effectiveness and high performance, with a maximum IOPS of 65K and power loss protection for added data security.Furthermore, the YSS25S3 takes its performance to the next level with the addition of an external DRAM buffer. Other customizable functions like quick erase and write protection enhances its versatility.Its rugged and robust design enables it to withstand harsh conditions such as mechanical shock and vibration, making it a top-of-the-line choice for industrial applications. Specification Dimensions - 2.5 inch L100.4mm * W70.0mm * H7.0mm Error±0.15mm Input voltage - DC 5V±5% Power consumption Idle - 0.4W(1TB) Power consumption Active - 4.2W(1TB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 66- bit/1KB Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃～75℃，-40℃～85℃ Storage Temp. - -55℃～105℃ Humidity - 5-95%
