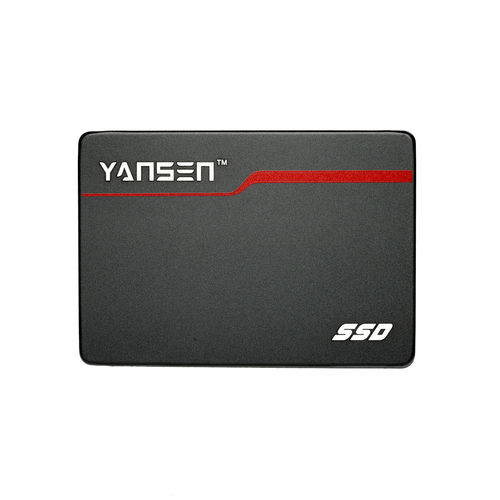

SATA II SSD YSISXXX-S220

internal2.5"industrial

Yansen’s YSISXXX-S220 utilizes SATA 2.0 interface, providing reliable and cost-effective storage for industrial applications with small storage requirements with a capacity range of 8-32GB. Although SATA 3.0 provides faster data transfer rates, SATA 2.0 still meets the performance requirements and specific scenario of many industrial applications at a more affordable price point.The 2D MLC flash technology used in this SSD ensures high data reliability and endurance, making it an excellent choice for industrial environments with small capacity needs. Specification Dimensions - 2.5 inch L100.4mm * W70.0mm * H7.0mm Error±0.15mm Input voltage - DC 5V±5% Power consumption Idle - 0.28W(Max) Power consumption Active - 0.95W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 66- bit/1KB Features - System automatic bad block management Operating Temp. - 0℃～70℃ Storage Temp. - -40℃～85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
