SATA SSD YSSHSS2 series

internalhalf-slimindustrial

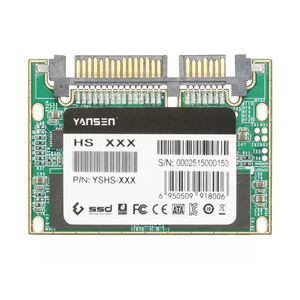

Yansem’s Half Slim SATA Flash module YSSHSS2 is a compact and reliable storage solution that measures less than 40% of conventional 1.8″ SATA SSDs. With a form factor of SATA 22pin, and utilizing SATA 3.1 interface, this SSD can deliver exceptional read/write speed with great performance for heavy-loading embedded or server operations with space constraints for host computing systems. It comes with a capacity range of 8GB to half-slim SSD 256GB utilizing high-reliability SLC/MLC NAND Flash. Additionally, YSSHSS2 features power management, TRIM, S.M.A.R.T., NCQ, and wear-leveling technologies. It’s the ideal solution for portable solid-state drive applications and extreme environmental operations. Specification Dimensions - Half Slim L54.0mm * W39.0mm * H4.5mm Error±0.15mm 4K Random read(IOPS) - 20000(256GB) 4K Random write(IOPS) - 36000(256GB) Input voltage - DC 5V±5% Power consumption Idle - 0.45W(256GB) Power consumption Active - 2.06W(256GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 66- bit/1KB Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃~75℃, -40℃~85℃ Storage Temp. - -55℃~105℃ Humidity - 5-95%
