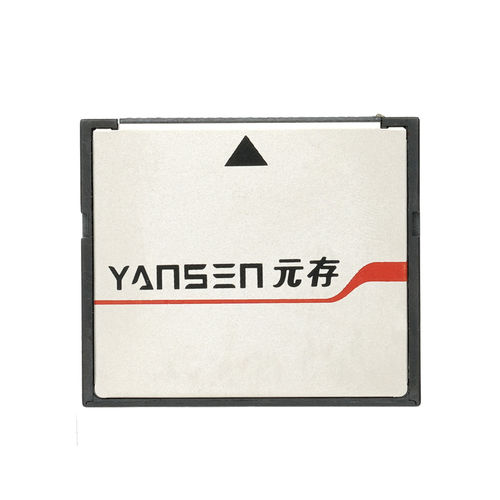

Flash memory card YSPCFS1 series

32 GB8 GB16 GB

The Yansen YSPCFS1 CF Card offers a reliable and durable storage solution for industrial applications. With high endurance SLC and MLC NAND Flash, this 50-pin form factor card is available in capacities ranging from 8GB to 128GB, and boasts a read/write speed of 80/50 MB/s. This card ensures data accuracy with features such as ECC function, wear-leveling function, and S.M.A.R.T. technology. Whether you require a boot drive with an OS image load or critical data logging, the Yansen YSPCFS1 CF Card is a dependable storage solution. Specification Dimensions - CF Card L42.8mm * W36.4mm * H3.3mm Error±0.5mm 4K Random read(IOPS) - 3120(128GB) 4K Random write(IOPS) - 474(128GB) Input voltage - DC 3.3V±5% Power consumption Idle - 0.29W(128GB) Power consumption Active 0.99W(128GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 66-bit/1KB Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - -20℃~75℃, -40℃~85℃ Storage Temp. - -55℃~105℃ Humidity - 5-95%
