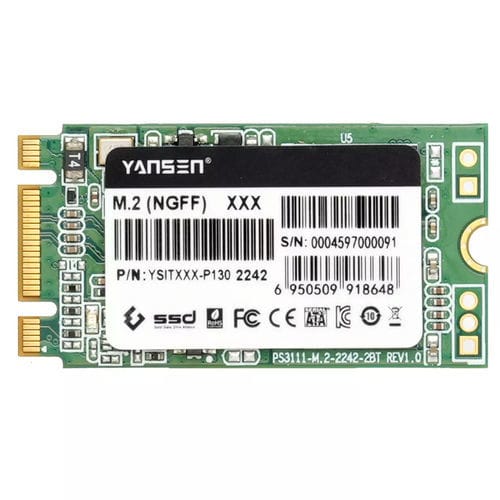

SATA III SSD YSITXXX-P130 2242

internalM.2industrial

YSITXXX-P130 2242 is designed as the standard M.2（B&M Key）2242 form factor with SATA interface with two-channel SSD controller and 3D TLC NAND Flash. YSITXXX-P130 2242 complies with Serial ATA I/II/III as well as 3.2 Protocol. To ensure the integrity of the data, we use Bad Block Management, Dynamic and Static Wear leveling, LDPC and other Technique supports. Meanwhile, YSITXXX-P130 2242 absolutely replaces the traditional hard disk and makes better performance. Specification Dimensions - M.2 2242 L42.0mm * W22.0mm * H3.5mm Error±0.15mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.34W(Max) Power consumption Active - 1.54W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Low Density Parity Check(LDPC) ECC Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - 0℃～70℃ Storage Temp. - -40℃～85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
