NVMe SSD YSNN1M3YTXXXINNNN

internalM.2industrial

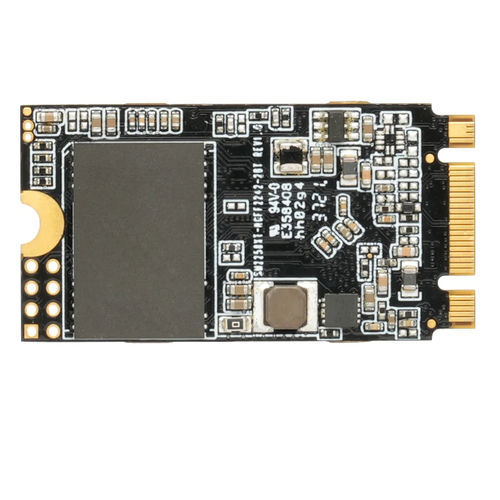

Introducing the Yansen YSNN1M3YTXXXINNNN 2242BM has a length of 42.0mm and M.2 B&M Key form factor, it is a high-quality M.2 NVMe SSD designed for reliable and efficient storage. By utilizing advanced 3D TLC technology and offering a capacity range of 128-1TB, this SSD delivers fast read and write speeds of up to 1200/1100 MB/s. It features a PCIe Gen3 (8Gb/s) x2 interface and supports NVMe 1.4 for optimal performance. This SSD is perfect for a wide range of applications. It can operate in temperatures ranging from -20℃~75℃ and -40℃~85℃, ensuring reliable operation in various environments. Specification Dimensions - M.2 2242 L42.0mm * W22.0mm * H3.2mm Error±0.1mm Input voltage - DC 3.3V±5% Power consumption Idle - 0.43W(Max) Power consumption Active - 2.0W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - LDPC Error Correction of Hardware Features - System automatic bad block management Operating Temp. - -20℃~75℃, -40℃~85℃ Storage Temp. - -55℃~105℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
