NVMe SSD YSINXXX-M430 2242BM

internalM.2industrial

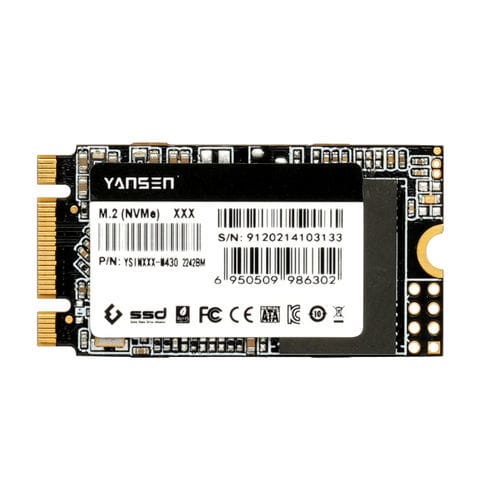

Introducing the Yansen YSINXXX-M430 2242BM has a length of 42.0mm and M.2 B&M Key form factor, it is a high-quality M.2 NVMe SSD designed for reliable and efficient storage. By utilizing advanced 3D TLC technology and offering a capacity range of 64-512GB, this SSD delivers fast read and write speeds of up to 1100/1000 MB/s. It features a PCIe Gen3 (8Gb/s) x2 interface and supports NVMe 1.4 for optimal performance. This SSD is perfect for a wide range of applications. It can operate in temperatures ranging from 0℃ to 70℃, ensuring reliable operation in various environments. Specification Dimensions - M.2 2242 L42.0mm * W22.0mm * H3.2mm Error±0.1mm 4K Random read(IOPS) - 96720(Max) 4K Random write(IOPS) - 13980(Max) Input voltage - DC 3.3V±5% Power consumption Idle - 0.43W(Max) Power consumption Active - 2.0W(Max) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - LDPC Error Correction of Hardware Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
