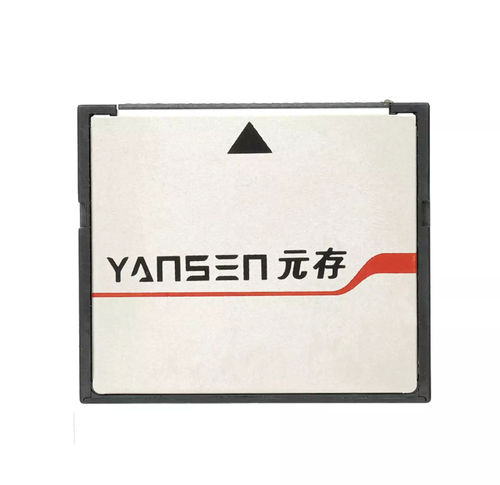

Flash memory card YSCF6 series

16 GB8 GB32 GB

The Yansen YSCF6-XXXS CF Card is a top-of-the-line storage solution tailored for industrial applications. With its 50-pin form factor and ATA/ATAPI-7 interface, this card utilizes SLC NAND flash memory and is available in capacities ranging from 16GB to 64GB. It offers read/write speeds of up to 120/90 MB/s, making it one of the fastest cards available. Not only can it brave frigid frost, But also bear the heat when it’s hot. From 0℃ to 70℃ it endures, This storage solution, steadfast and sure. Specification Dimensions - L42.8mm * W36.4mm * H3.3mm Error±0.5mm 4K Random read(IOPS) - 4000(64GB) 4K Random write(IOPS) - 700(64GB) Input voltage - DC 3.3V±5% Power consumption Idle - 0.10W(64GB) Power consumption Active - 1.15W(64GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 72bit/1KB Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
