SATA II SSD YSSDV-XXXS

internalindustrial

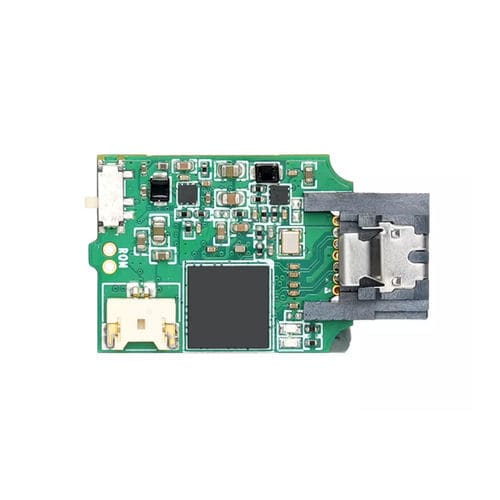

Yansen’s YSSDV-XXXS SATA DOM Vertical module is a highly reliable storage solution specifically designed for space-constrained industrial and embedded applications. This high-speed disk module has a capacity range of 8GB – 32GB and utilizes SLC technology for maximum performance and endurance. Compared to 3D NAND, SLC NAND has a higher write endurance, making it excellent for applications that require frequent and intensive write operations. With a SATA 7pin form factor and wear-leveling technology, the YSSDV-XXXS ensures maximum durability and performance, creating the perfect choice for applications that demand speed and reliability in a compact form factor. Specification Dimensions - SATA DOM L47.8mm * W25.0mm * H9.3mm Error±0.5mm 4K Random read(IOPS) - 8200(32GB) 4K Random write(IOPS) - 6000(32GB) Input voltage - DC 5V±5% Power consumption Idle - 0.26W(32GB) Power consumption Active - 0.80W(32GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 72bit/1KB Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G
