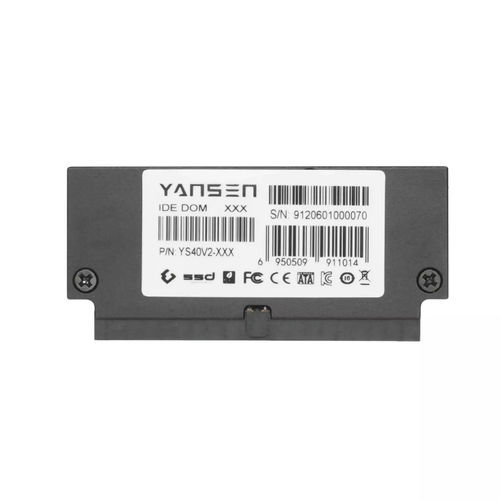

IDE SSD YS40V2-XXXS

internalindustrial

YS40V2-XXXS is a high performance and high reliability storage device which consists nonvolatile NAND Flash memories and semiconductor components. This technology is designed to optimize the limitations of low computing performance of traditional hard disk drives. All mechanical parts have been replaced with electronic components to prevent shock and vibration damages. Specification Dimensions - L59.4mm * W27.45mm * H8.36mm Error±0.5mm 4K Random read(IOPS) - 3200(16GB) 4K Random write(IOPS) - 620(16GB) Input voltage - DC 5V±5% Power consumption Idle - 0.16W(16GB) Power consumption Active - 1.60W(16GB) Data retention - 10years below 25 degree MTBF - 2 million hours ECC - Hardware BCH ECC capable of correcting errors up to 72bit/1KB Features - System automatic bad block management Operating Temp. - 0℃~70℃ Storage Temp. - -40℃~85℃ Humidity - 5-95% Vibration - 80Hz~2000Hz/20G Shock - 1500G/0.5ms
