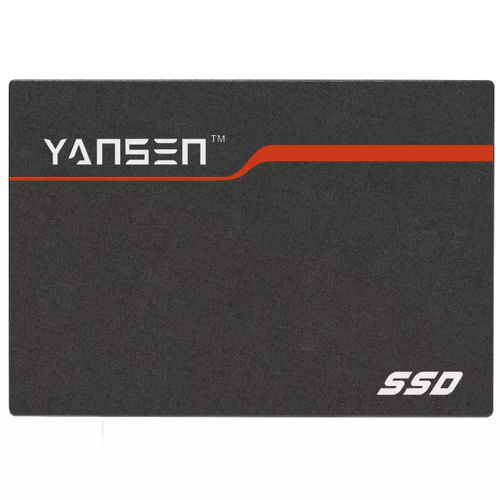

SATA II SSD YST25M5YD series

external2.5"

YST25M5YDXXXXXXXX is a domestically-produced 2.5-inch SSD designed for video surveillance, based on the Maxio Technology MAS1102 SATA controller paired with Yangtze Memory 3D TLC NAND flash. It incorporates optimized data writing algorithms, taking into account the characteristics of data storage in video surveillance equipment and the read/write properties of 3D TLC flash memory. This ensures stable write performance without dropping frames in video recording. Specification Dimensions - L100.4mm * W70.0mm * H7.0mm Error±0.15mm Input voltage - DC 5V±5% Power consumption Idle - 0.2W(2TB) Power consumption Active - 1.0W(2TB) MTBF - 2 million hours ECC - 4K Low Density Parity Check(LDPC) ECC Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - 0℃～70℃，-20℃～75℃ Storage Temp. - -55℃～95℃ Humidity - 5-95%
