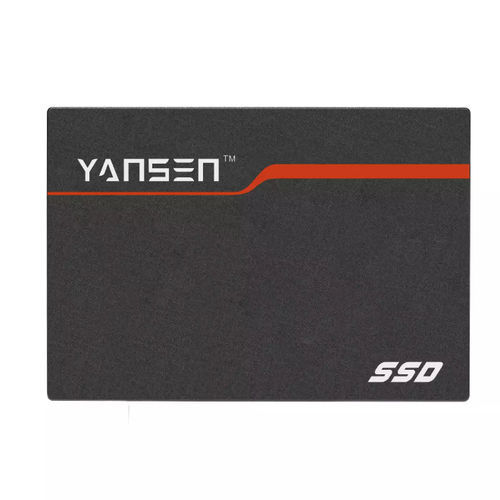

SATA II SSD YST25G1YD series

external2.5"

YST25G1YDXXXXXXXX series high-capacity solid-state drive (SSD) for video surveillance adopts an 8-channel high-performance SATA2 controller chip. It is equipped with DDR4 cache and YMTC X2-9060 3D TLC flash memory chip. By leveraging the characteristics of YMTC X2-9060 3D TLC flash memory chip, the firmware optimizes TLC direct writing and intelligent software and hardware power loss protection to achieve end-to-end data protection and power loss protection. The SSD also utilizes dynamic intelligent overheating frequency reduction technology and heat dissipation technology to ensure stable performance during long-term write operations, preventing speed drops and data loss in video recording. Specification Dimensions - L100.4mm * W70.0mm * H7.0mm Error±0.15mm Input voltage - DC 5V±5% Power consumption Idle - 0.45W(MAX) Power consumption Active - 4.2W(MAX) MTBF - 2 million hours ECC - 4K Low Density Parity Check(LDPC) ECC Features - Power management/TRIM/S.M.A.R.T./NCQ/Wear-leveling Operating Temp. - 0℃～70℃，-20℃～75℃ Storage Temp. - -55℃～95℃ Humidity - 5-95%
