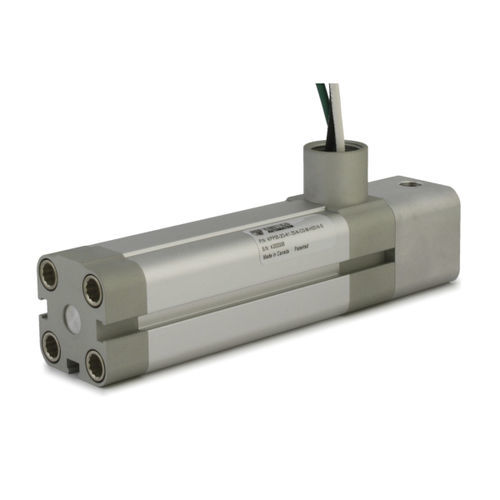

The Kinitics Piston Pump (KPP) is a shape memory alloy-based actuator that uses Bundled Wire technology to deliver a precision stroke in a compact package. Displacement and flow control is possible through the addition of a linear sensor while pressure control is possible through the use of a pressure sensor.
Kinitics Piston Pump Features
• Wide range of compatible fluids
• Displacements up to 8.4 cc (0.5 cu.in.)
• Flow rates up to 25 LPH (6.6 GPH)
• Configurable ports
• Flexible AC and DC power options
• Flying lead or SJOOW cable hook-up
• -40⁰ C to 60⁰ C operating range
• Rod and piston are the only moving parts
• IP67 Environmental Protection
• Compatible with ISO 21287 hardware
• Wide range of mounting brackets
• Adjustable home position switch
• Master cylinder
• Braking / clutching
• Metering pump
The Kinitics KCD125 Controller simplifies using Kinitics DC Linear Actuators and Piston Pumps by interfacing easily with PLC’s, control switches, relays, and standard I/O cards. Closed- and open-loop control using one or several inputs allows for a high degree of accuracy and repeatability while maintaining the actuator within recommended safety limits.
