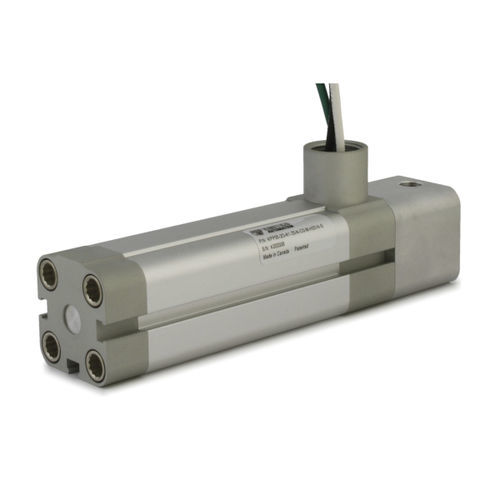

Electric valve actuator KPP05-5 series

linearpistonIP67

The Kinitics Piston Pump (KPP) is a shape memory alloy-based actuator that uses Bundled Wire technology to deliver a precision stroke in a compact package. Displacement and flow control is possible through the addition of a linear sensor while pressure control is possible through the use of a pressure sensor. • Wide range of compatible fluids • Rated pressures up to 100 Bar (1450 psi) • Strokes up to 7 mm (0.26″) • Displacements up to 8.4 cc (0.5 cu.in.) • Flow rates up to 25 LPH (6.6 GPH) • Configurable ports • Flexible AC and DC power options • Flying lead or SJOOW cable hook-up • -40⁰ C to 60⁰ C operating range • Rod and piston are the only moving parts • IP67 Environmental Protection • Compatible with ISO 21287 hardware • Wide range of mounting brackets • Adjustable home position switch • Master cylinder • Braking / clutching • Metering pump The Kinitics KCD125 Controller simplifies using Kinitics DC Linear Actuators and Piston Pumps by interfacing easily with PLC’s, control switches, relays, and standard I/O cards. Closed- and open-loop control using one or several inputs allows for a high degree of accuracy and repeatability while maintaining the actuator within recommended safety limits.
