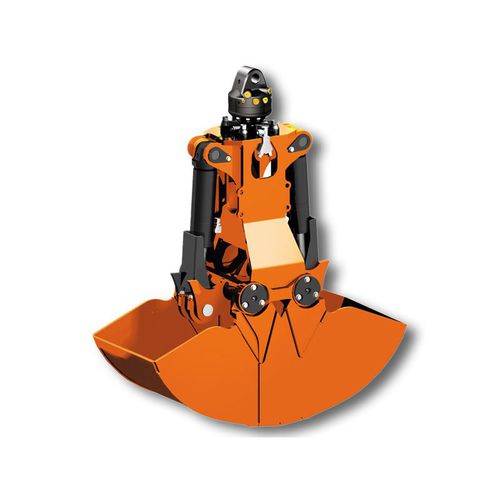

Hydraulic clam bucket KM 60x series

The KINSHOFER clamshell buckets with vertical cylinders are available for daily routine works or as heavy duty version for difficult tasks. The closely positioned shell pivots ensure a good digging behaviour and high closing pressure. Cutting edges made of 500 HB steel and a generously dimensioned bearing system contribute to the longevity of the grapples. The daily routine version (KM 603) is also available including a scraper (F-version) or featuring round shells (R-version). The hydraulic cylinder is positioned inside the hub, lowering the risk of damages. The cylinders of the heavy duty version (KM 607) are protected by piston rod protections. Bolt-on digging teeth can easily be exchanged if required. Alternatively to the clamshell buckets with vertical cylinder, a clamshell bucket with HPXdrive can be used with an extension for excavating.
