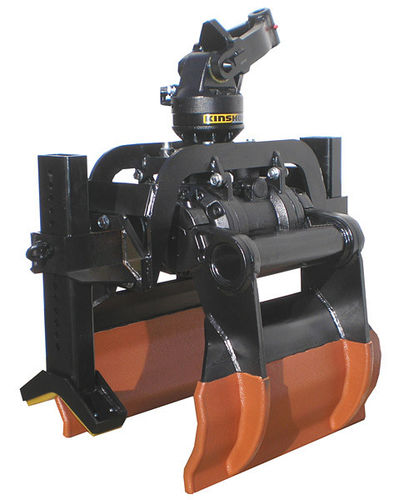

Bunching grab KM 930HPX

hydraulicfor pipefor excavators

KM 930HPX Pipe Grab: The KM 930HPX pipe grab with the maintenance-free HPXdrive has been developed especially for the secure lifting and positioning of poles and tubes for excavators with up to 9t / 19800 lbs operating weight. The revolutionary HPXdrive-concept generates the rotation of the arms by two hollow shafts which run opposed and have a helix thread, hydraulically driven by a single piston. There are no hydraulic cylinders required! A longer life cycle of up to 50% and the integrated self-lubrication as the drive unit runs in a permanent oil bath are also featured by the drive, as well as the compact design, making the HPXdrive resistant to dirt and debris. Versatility is granted by different types of available shells that can easily be refitted onto the unit. The perfect alternative to cylinder-operated grapples that do not only save time and cost, but also facilitate every task. An optional PU-coating of the shells provides for a better grip.
