Flexible printed circuit board Rigid-Flex PCB

5 layers6 layers8 layers

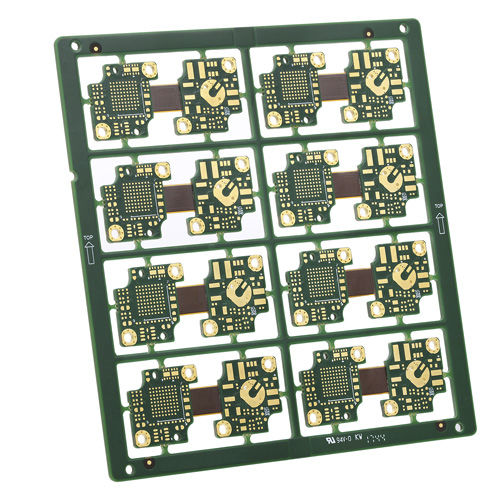

Rigid-flex boards are PCBs that have Flexible PCBs (FPC) and Rigid PCBs on the same board, which are commonly employed to save space, remove wiring assemblies and can also be welded with complex components. Combining other higher technology boards, such as HDI, as a part of its packaging, is also a common design. Rigid-flex with 2-16L rigid board and 1-6L flex board Air gap structure on flexible area Rigid-flex PCB with 2-step HDI Rigid-flex with asymmetric structure (1 flexible layer + 1 rigid layer) Dispensing on rigid flex transition area
