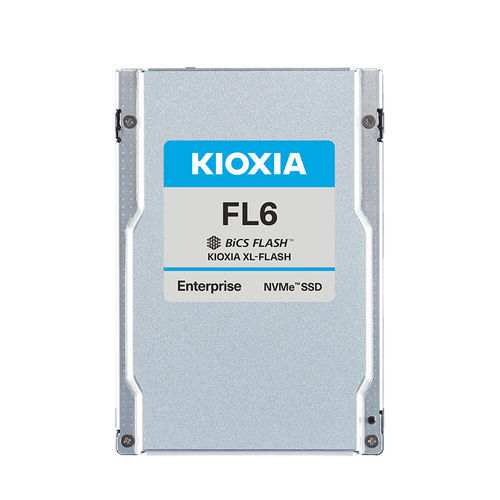

PCIe SSD FL6

NVMeinternal2.5"

The KIOXIA FL6 Series is a dual-port PCIe® 4.0 / NVMe™ SSD providing excellent system performance with low latency for applications where response time is critical. It is ideal for enterprise and hyperscale data center applications, such as server caching, write logging, and read/write caching in tiered storage environments. FL6 Series features KIOXIA’s XL-FLASH storage class memory (SCM) which bridges the performance gap between DRAM and NAND flash memory. It offers 60 DWPD (Drive Writes Per Day) endurance and performance up to 1.5 M random read IOPS, 400 K random write IOPS, with 29 μs read latency and 8 μs write latency. Key Features -PCIe® 4.0, NVMe™ 1.4 specification compliant -60 DWPD endurance and 800 GB to 3,200 GB capacities -Form factor: 2.5-inch, 15mm Z-height -KIOXIA XL-FLASH is 96-layer BiCS FLASH™ 3D flash memory and 1-bit/cell SLC technology for high-speed reads and writes -SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplane -Dual-port design for high availability applications -6th generation flash die failure protection -Power loss protection (PLP) and end-to-end data protection -Suited for 24x7 enterprise workloads -Data security options: SIE, SED (TCG Opal/Ruby), FIPS 140-2[1, 2, 3, 4, 5] Key Applications -Server caching and write logging for enterprise and large data centers -Read/write caching in tiered storage
