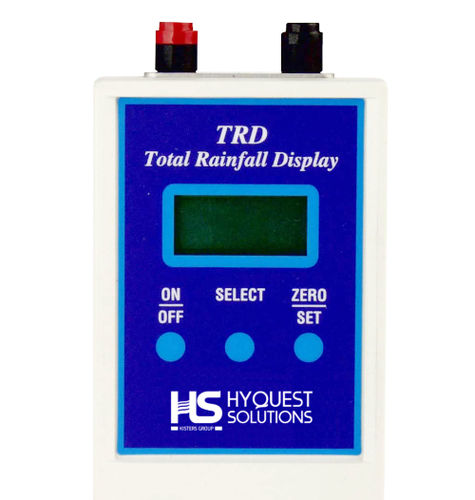

LCD indicator totalizer TRD100

battery-powered

HyQuest Solutions' Totaliser is a 2 line, 8 digit, 4.5 mm high LCD unit that counts and displays the total rainfall from a Tipping Bucket Rain Gauge. The counts are registered in increments of 0.2 mm, 0.5 mm, 1.0 mm or 0.01 inch or points of inch. The unit also displays time and date. All functions are push button selectable. These functions include setting of ‘rainfall increments’, ‘switch off’ time from 5 seconds or 5 minutes (to conserve battery power) and zero reset. It has the ability to count and display the total rainfall from a tipping bucket rain gauge. Displays rainfall in increments of > 0.2, 0.5 and 1.0 mm > 0.01 inch > Points Battery life up to 10 years Push button function select TBRG field calibration As a totaliser where it can be mounted inside the tipping bucket rain gauge As a totaliser mounted inside an office or house with the tipping bucket rain gauge up to 120 metres away With a Field Calibration Device (FCD) for field calibration of tipping bucket rain gauges The Totaliser comes in a sealed ABS case (120 x 65x 22 mm) which can be wall mounted or internally mounted in the rain gauge. There is a provision for two AA lithium batteries. One will operate the unit for up to 5 years and two will operate up to 10 years. Connecting lead from TRD to rain gauge can be up to 120 meters in length. A calibration lead one meter long can be supplied allowing the TRD to be used as a calibration aid when performing field calibration of a tipping bucket rain gauge.
