Purge system HS40

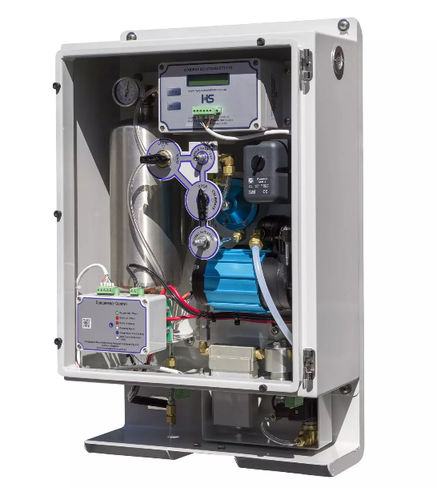

The HS40 Series II Gas Purge Compressor and Bubbler System has been designed to replace conventional nitrogen gas bottle supply to bubble units or gas purge systems. The HS40 is used for measuring water level in dams, rivers, canals and tanks with up to 40 mH2O (130 ft) head. A complete system consists of air compressor, pressure tank, membrane filter dryer, micro mist separator with an auto purge valve and bubbling system. All components are housed in a single small enclosure. Built-in smart pump control monitors the pressure in the system to optimize power consumption while ensuring best operation and accurcy. HS40/3100/II HS40/3100A/II With the built-in pressure sensors WL3100 or WL3100A an accuracy of +/-0,02 % FS is achieved. For this purpose, a pressure and temperature compensation of the measurement via a “user factor” is carried out. The factor is entered by the user as a numerical value in the WL3100, and calculated by the WL3100A from the coordinates, the typical water level, and a reference temperature of the water. Continuous bubbler: constant pressure keeps water out of the river line - no contamination or clogging, no freezing Low power consumption through modern electronics and optimized pump control Dessicant and maintenance free No need for gas bottles Mechanical air drying allows use even in humid (e.g. tropical) conditions. Depending on the measuring depth up to 300 m river line possible (gauge house to orifice) Robust construction of electromechanical components in industrial quality Selection of accessories: orifices in standard size or large volume
