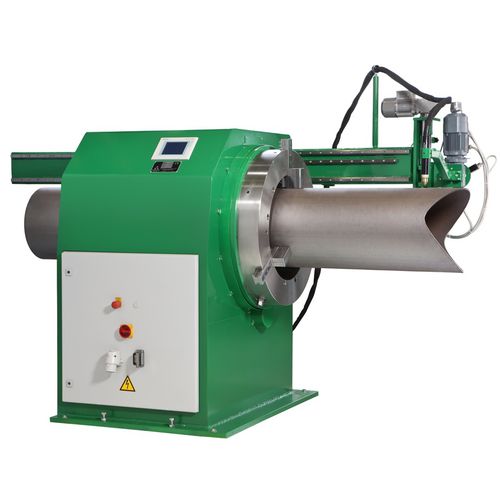

Oxy-fuel cutting machine SCM 300
plasmafor metalprofile

Oxy-fuel cutting machine - SCM 300 - Kistler - plasma / for metal / profile
Oxy-fuel cutting machine - SCM 300 - Kistler - plasma / for metal / profile
Add to favorites
Compare this product


Characteristics

Technology
oxy-fuel, plasma
Material
for metal
Product handled
profile, for PCB
Control type
PLC-controlled
Associated function
profiling
Applications
for industrial applications
Other characteristics
automatic, high-precision
Cutting speed

2,000 mm/min
(1.312 in/s)

Description

Pipe profiling machines SCM-range Application: Pipe cutting machines of the SCM range are used for pipe cutting and profiling in the workshop as well as on site. Description: The SCM machines are equipped with two PLC-controlled axis which enables the machin to cut pipes in conjunction with a plasma or oxy-fuel torch. The work piece is clamped by a driven chuck (axis1), then the torch is moved ovr the pipe (axis2). Optional, a third controlled axis can be added to enable the machine to bevel end cuts (straight, miter and branches). All programming is menu-driven, the machine is therefore easy to operate.
