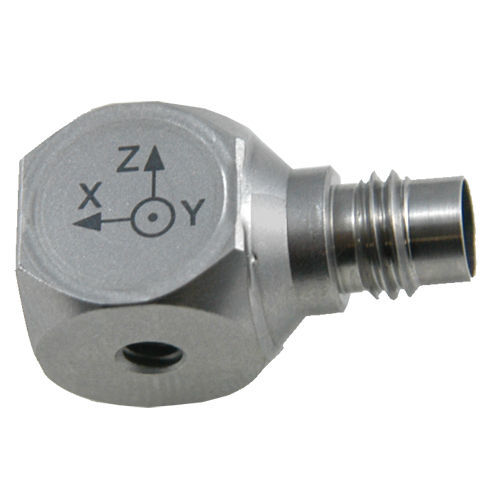

Triaxial accelerometer 8766A1K0ATIEPEminiaturelow-sensitivity
Add to favorites
Compare this product
Characteristics
- Number of axes
- triaxial
- Technology
- IEPE
- Other characteristics
- miniature, low-sensitivity, high-temperature, adhesive, with TEDS, IP68
- Frequency
Min.: 1 Hz
Max.: 12,000 Hz
Description
• Acceleration range: ±1000 g
• M4.5, 4-pin connector
This is an accelerometer with a 1000 g range, M4.5 connector, and selectable TEDS Template.
Maximum measuring range [g]
1000 g
Electrical properties
Electrical isolation
Case isolation
Influence quantities
Sensitivity for Voltage and IEPE Output
5 mV/g
Dynamical properties
Operation and installation
Minimal operating temperature [°C]
-54 °C
Maximum operating temperature [°C]
120 °C
Mounting type
Threaded hole / Stud, Adhesive / Wax, Magnetic base
Applications
3C electronics manufacturing
