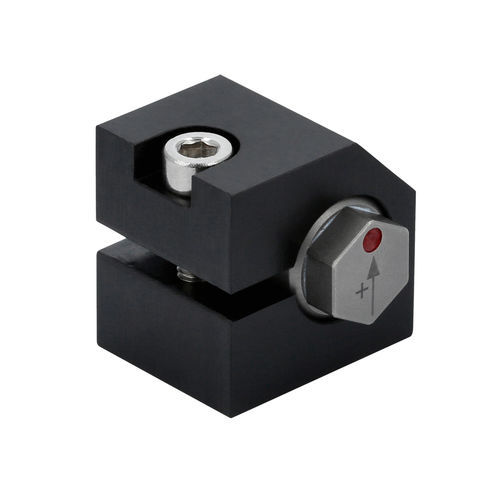

1-axis accelerometer 8775A050IEPEshearadhesive
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Technology
- IEPE, shear
- Other characteristics
- adhesive, IP68
- Frequency
Min.: 0.5 Hz
Max.: 7,000 Hz
Description
• Acceleration range: ±50 g
• 10-32 coaxial connector
Orientable accelerometer with a 50 g range, and 10-32 coaxial connector.
Electrical isolation
Ground isolation
Operation and installation
Minimal operating temperature [°C]
-54 °C
Maximum operating temperature [°C]
100 °C
Mounting type
Adhesive / Wax, Mounting block
Applications
eVTOL / UAV / drone testing, 3C electronics manufacturing
Catalogs
No catalogs are available for this product.
See all of Kistler‘s catalogs
