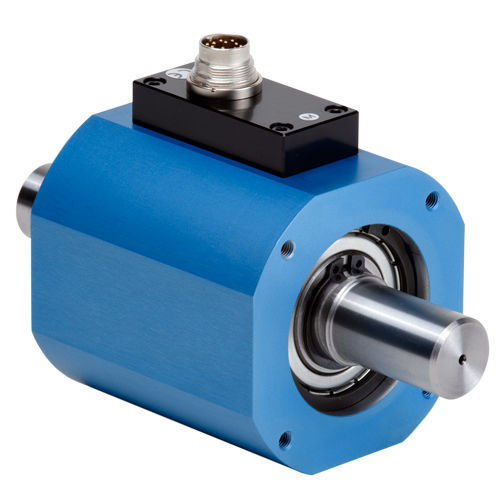

Static torque sensor 4520Adynamic0-10 V24 Vdc
Add to favorites
Compare this product
Characteristics
- Type
- static, dynamic
- Output
- 0-10 V
- Supply voltage
- 24 Vdc
- Protection level
- IP40
- Torque
Max.: 1,000 Nm
(737.56 ft.lb)Min.: 1 Nm
(0.74 ft.lb)- Rotational speed
10,000 rpm
(62,832 rad.min-1)
Description
• Maintenance-free due to contactfree signal transmission
• Integral speed measurement with 60 pulses/revolution
Rotating / Non-rotating
Rotating
Mechanical properties
Limiting Torque
150 %
Metrological characteristics
Linearity including hysteresis
0.5 %FSO
Dual-range
No
Accuracy class strain gauge
0.5
Electrical properties
Control signal
100±0.5%
Load resistance, minimal
10 kΩ
Influence quantities
Thermal sensitivity shift
<±0.3 %FSO/10 °C
Temperature influence zero point
0.3 %FSO/10K
Temperature influence nominal value
0.3 %FSO/10K
