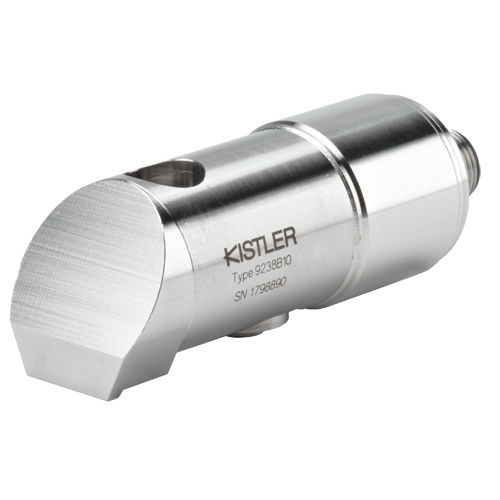

Strain sensor for dynamic applications 9238B10

screw-inclamp-on

• Two fully programmable, independent and switchable measuring ranges (±20 … ±800 με) • Dimensions LxBxH (mm): 68.1x25x26.7 • Output signal: –10 … 10 V, connection: M12x1 8-pin pos. Measuring range [µε] -800 … 800 με Calibrations Calibrated measuring range [με] 0 … 500 με Product type Strain sensor type Surface strain transmitter Mechanical properties Mechanical overload ±1000 με Metrological characteristics Linearity ≤±2 %FSO Adjustment error <0.5 %FS Electrical properties Excitation voltage 18 … 30 V Output signal type Voltage Maximal current consumption 1 mA No load current <70 mA
