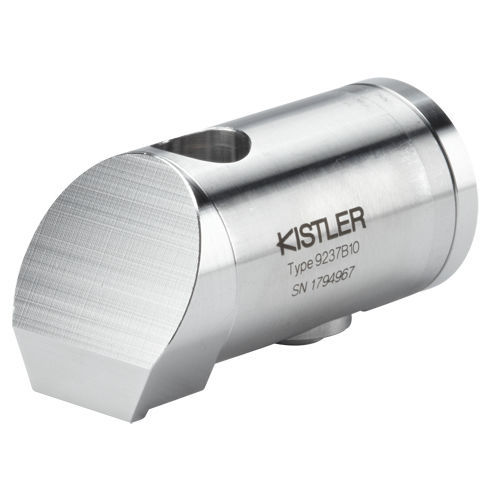

Strain sensor for dynamic applications 9237B10

screw-in

• Piezoelectric sensor, measuring range: –800 … 800 με • Nominal sensitivity: –34 pC/με • Dimensions LxBxH (mm): 62.25x25x26.7 • Output connection: KIAG 10-32 neg. Calibrations Calibrated measuring range [με] 0 … 500 με Product type Strain sensor type Surface strain sensor Mechanical properties Mechanical overload ±1000 με Metrological characteristics Linearity ≤±2 %FSO Nominal sensitivity [pC/με] -34 pC/με Electrical properties Output signal type Charge (Piezoelectric, PE) Certificates and Standards Degree of protection EN 60529 IP65
