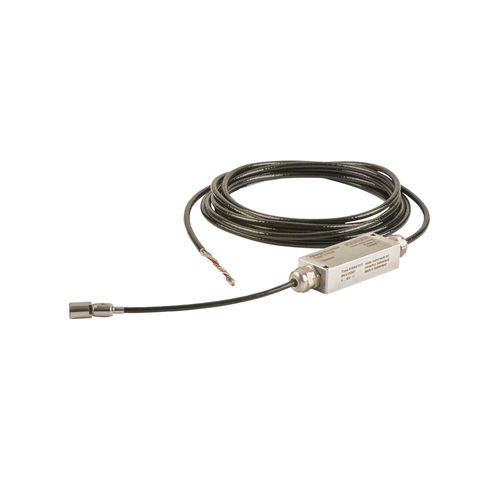

Charge amplifier 5189Ameasuringmulti-channelcompact
Add to favorites
Compare this product
Characteristics
- Type
- charge
- Secondary function
- measuring
- Other characteristics
- in-line, multi-channel, compact
- Voltage
-4,500 mV, 4,500 mV
- Frequency
10 kHz
Description
• Submersible 3-channel inline charge amplifier for triaxial force sensors
• Switchable ranges and reset/operate
• Compact dimensions for versatile application
• Protection class IP68 up to 10 bar (EN60529)
The Type 5189 is a submersible and compact 3-channel universal charge amplifier. Packaged in a welded stainless steel housing, it meets the highest requirements and can be used in various applications such as towing tanks, wave tanks, rotating shafts etc. The measuring range can be ordered with 10000 pC, 30000 pC or 100000 pC. Using an electrical contact the amplifier can be operated in a partial range (approx. 10%) for high resolution requirements and allow reset/operate. The cable length and time constants (long and short) can be ordered according to customer requirements.
