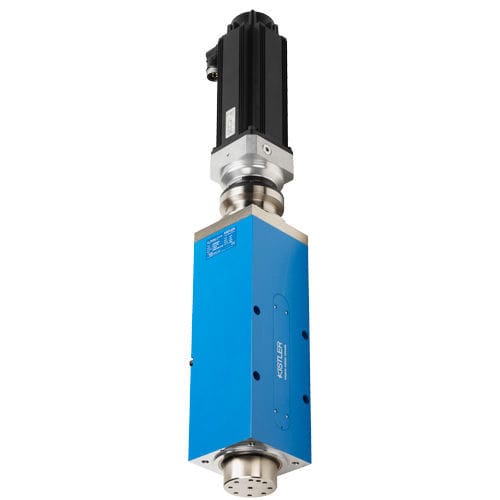

Joining module with integrated force sensor 2153A1002002KG

servo-driven

• Measuring range: 100 kN • 200 mm stroke • Speed 200 mm/s with safety brake (K) The NC joining module NCFN Type 2153A... with integrated strain gage force sensor for nominal forces of 5 ... 300 kN is excellent for use in assembly and joining processes monitored by force displacement. The NC joining modules NCFN Type 2153A... consist of a robust housing with an integral strain gage tension/compressionforce sensor. An absolute encoder for precise positioning is integrated in the drive motor. The motor is an electrically commutated AC servo motor which is driven by a servo amplifier. This servo amplifier provides constant speed, independant of load. Standard functions like block pressing, position pressingand force feedback controlled pressing as well as intermediate positioning are supported.
