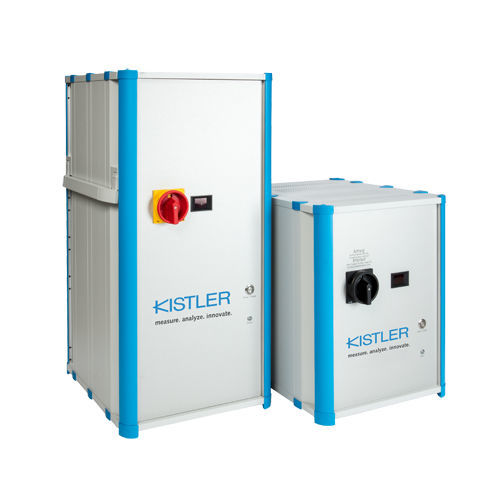

Regulating control unit 5413-2777

• Capable of storing 64 predefined parameter sets • Rated power: 10 kVA Universal control unit with servo regulator for servo drive units such as motors, spindles and BOSCH spindles with DC-linkvoltages from 325 V to 560 V in the respective mains supply voltages (via additional transformers if required). Up to 64 different, predefined parameter sets can be stored and selected via plug-in type hardware parameter selectors. Type 5413-2777/P2.2 is designed for simultaneous connection of two drive units, whereby the two drive units can only be operated in alternate succession. The internal switching between the two drive units is realized on the software side via the operating software for the entire system. Operation and installation Applications Bolted joints analysis
