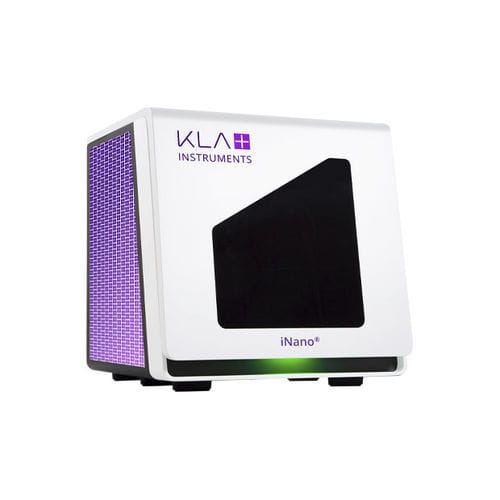

Hardness test indenter iNano®

The iNano nanoindenter features the InForce 50 actuator for performing nanoindentation and universal nanomechanical tests. The 50mN force and 50µm displacement range of the InForce 50 allow the system to perform a wide range of tests. The InView software is a flexible, modern software package that makes nanoscale testing easy. The iNano is a compact platform with the high-speed InQuest controller and vibration isolation gantry built in to the enclosure. An extensive range of materials and devices can be tested, including metals, ceramics, composites, thin films, coatings, polymers, biomaterials and gels. • InForce 50 actuator for capacitance displacement measurement and electromagnetic force actuation with interchangeable tips • Unique software-integrated tip-calibration system for fast, accurate tip calibration • InQuest high-speed controller electronics with 100kHz data acquisition rate and 20µs time constant • XY motion system with easy mounting magnetic sample holder • Integrated microscope with digital zoom for precise indentation targeting • ISO 14577 and standardized test methods • InView software package with RunTest, ReviewData, InFocus reporting, InView University online training and InView mobile application Applications • Hardness and modulus measurements (Oliver-Pharr) • High speed material property maps • ISO 14577 hardness testing • Polymer tan delta, storage and loss modulus • High Temperature Nanoindentation Testing
