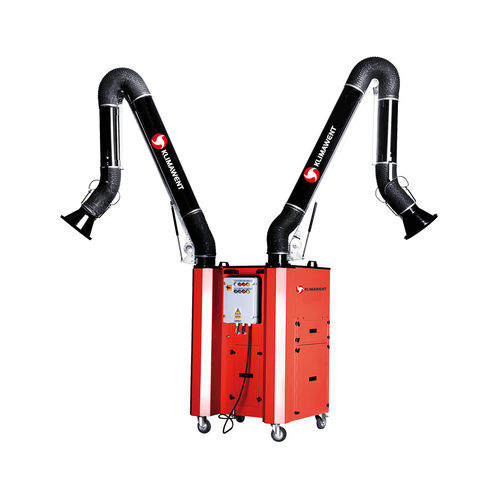

Mobile fume extractor UFO-S serieswall-mountedweldingcartridge
Add to favorites
Compare this product
Characteristics
- Mobility
- mobile, wall-mounted
- Applications
- welding
- Filter type
- cartridge
- Other characteristics
- with multiple extraction arms
- Airflow
Min.: 2,000 m³/h
(70,629 ft³/h)Max.: 3,000 m³/h
(105,944 ft³/h)- Power
Min.: 1.1 kW
(1.5 hp)Max.: 2.2 kW
(2.99 hp)
Description
Application
UFO-S filtering units are applied for cleaning the air from dust- and gas impurities, arising during various production processes. They are irreplaceable for capturing the dry dust particles, arising during welding and other processes, where fine dust is being emitted. Maximum temperature of the conveyed air should not exceed +60°C. Due to automatically regenerated cartridge filters, the dust particles are separated on the outer filter surface. By means of impulses of compressed air, the contamination is cyclically struck off from the filter surface.
UFO-S are manufactured in versions:
mobile,
stationary – on-wall application.
Both these versions provide full air re-circulation.
