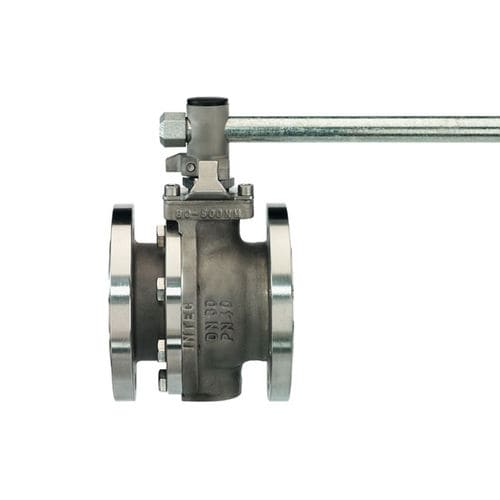

Ball valve K210

leverfor controlthreaded

INTEC K210 Flanged ball valve, trunnion mounted ball, both sides spring loaded seat rings, soft seated. Features nominal sizes DN 80 - DN 500 nominal sizes NPS 3" - NPS 20" two-piece split body soft seated trunnion mounted ball both sides spring loaded seat rings FTF dimensions acc. to EN 558, GR.1 and EN 558, GR.27 FTF dimensions acc. to ANSI B 16.10 flanges acc. to EN 1092 flanges acc. to ANSI B 16.5 top flange DIN EN ISO 5211 full bore The high pressure series for all laboratory and miniplant applications for process industries. The series is available from threaded end to clamping ring connection. All variations are used for laboratory and also in control applications. A benefit for this series is also the smart possibility for automation. Certified acc. to German clean air act VDI 2440! Product Advantages Compact design One piece body reduces fugitive emissions Best suited for automation Wide range of accessories Accessories Heating jacket Hand lever with bayonet locking Hand lever extension Block unit - padlock unit Spring close unit - automatical return lever ("dead man handle") Special Designs Special materials like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc. PEEK seated Special connections on request
