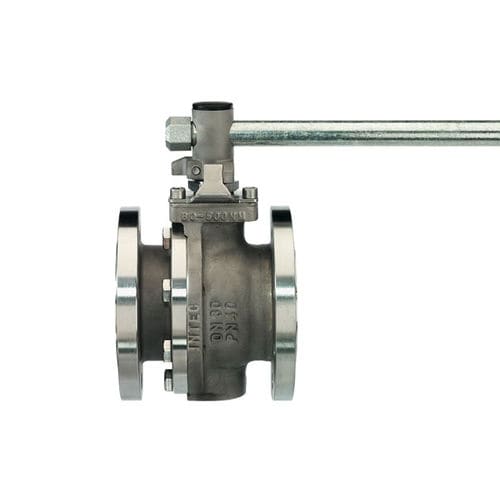

Ball valve K211

leverfor controlthreaded

INTEC K211 Flanged ball valve, trunnion mounted ball, both sides spring loaded seat rings, metal seated. Features nominal sizes DN 80 - DN 300 nominal sizes NPS 3" - NPS 12" two-piece split body metal seated trunnion mounted ball both sides spring loaded seat rings FTF dimensions acc. to EN 558, GR.1 and EN 558, GR.27 FTF dimensions acc. to ANSI B 16.10 flanges acc. to EN 1092 flanges acc. to ANSI B 16.5 top flange DIN EN ISO 5211 full bore INTEC K200 - 2-piece Flanged Ball Valves INTEC 2x1: Seat ring system metal seated. High end ball valves for the chemical industry. Proven design with perfect technical functionality. The ball valves are available in various material combinations and with different features. Concept of INTEC System technology Approvals acc. to virtually regulations System construction unit of all components for reduction of storage costs No o-rings - universal applicable Stuffing box system absolutely ageing resistant System design in a Graphite/KF cone ring principle Real primary sealing, no friction washer or bearing ring using of the floating ring seal principle (Graphite cone ring in KFGN-profile) Stem material Duplex (1.4462), using of best knowledge of the pump technology Reinforced stem design for more safety in automation FDA conformity for pharmaceutical application BAM conformity for oxygen (optional) Product Advantages "Seat ring system metal seated"
