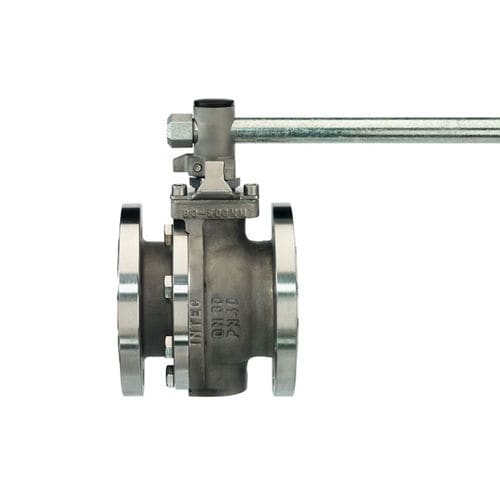

Ball valve K234

leverfor controlthreaded

INTEC K234 Flanged ball valve, trunnion mounted ball, single side spring loaded seat ring, free outlet, PEEK seated. Features nominal sizes DN 80 - DN 500 nominal sizes NPS 3" - NPS 20" two-piece split body PEEK seated trunnion mounted ball single side spring loaded seat ring free outlet FTF dimensions acc. to EN 558, GR.1 and EN 558, GR.27 FTF dimensions acc. to ANSI B 16.10 flanges acc. to EN 1092 flanges acc. to ANSI B 16.5 top flange DIN EN ISO 5211 full bore INTEC K200 - 2-piece Flanged Ball Valves INTEC K23x: Free outlet, clearance volume free. The ball valve revolution for all condition of aggregation. Fields of application: production of catalysers, transport of solids (bulk material transport systems), gaseous medias with contend of solid, solid/liquid applications, crystallising medias. Product Advantages Equipped with all advantages of series INTEC K200 Also metal to metal gas tight acc. to EN 12266-1, leak rate A Free outlet for all kind of solid Clearance colume free Wide range of special materials Design acc. to DIN and ANSI Accessories Heating jacket Hand lever extension Stem extension Block unit - padlock unit Grid unit Hand lever with bayonet locking
