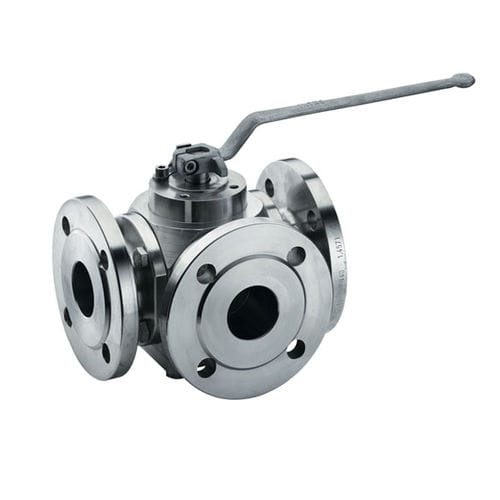

Ball valve K410

leverseatmodular

INTEC K410 Multiple way ball valve, trunnion mounted ball, both sides spring loaded seat rings, soft seated. Features nominal sizes DN 15 - DN 100 nominal sizes NPS 1/2" - NPS 4" three-way ball valve soft seated trunnion mounted ball both sides spring loaded seat rings ball with L- or T-bore FTF dimensions acc. to EN 558, GR.1 FTF dimensions acc. to ANSI B 16.10 flanges acc. to EN 1092 flanges acc. to ANSI B 16.5 top flange DIN EN ISO 5211 full bore INTEC K400 - Multiple way ball valves Multiple way ball valve of the modular INTEC system technology! The universal multiple way ball valve in the unit construction system of the INTEC K200 series. With 3-, 4- or 5-way applications, your medium is safety in flow! Product Advantages Equipped with all advantages of the series INTEC K200 Full bore T- or L-bore Overlap free ports available (optional) Top flange DIN EN ISO 5211 Design acc. to DIN and ANSI Accessories Heating jacket Hand lever extension Stem extension Block unit - padlock unit Grid unit Hand lever with bayonet locking Gear (hand operated)
