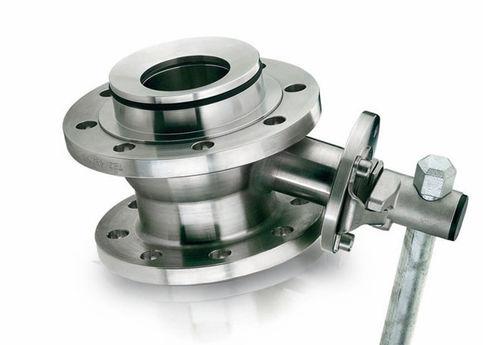

Floating ball valve K500

manualfor controlstainless steel

INTEC K500 Tank bottom ball valve, floating ball, single side spring loaded seat ring, soft seated. Features DN 80/50 - DN 200/150 two-piece split body soft seated floating ball single side spring loaded seat ring tank connection acc. to DIN 28140 part 1 FTF dimensions acc. to EN 558, GR.13 flanges acc. to EN 1092 top flange DIN EN ISO 5211 full bore INTEC K500 - Tank bottom ball valves Tank bottom ball valve of the modular INTEC system technology! The stem is angularly placed and thus a marsh free installation and trouble free automation is possible. Product Features Equipped with all advantages of the series INTEC K200 Individual connections on request Clearance volume minimized Marsh free installation Trouble free automation Metal seated up to +400°C Accessories Heating jacket Flushing connections Special Designs Special materials like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc. Certificates and Approvals Certified acc. to German clean air act VDI 2440, 100,000 cycles -40°C up to +220°C ATEX 2014/34/EU
