Ball valve KHI

manualshut-offblocking

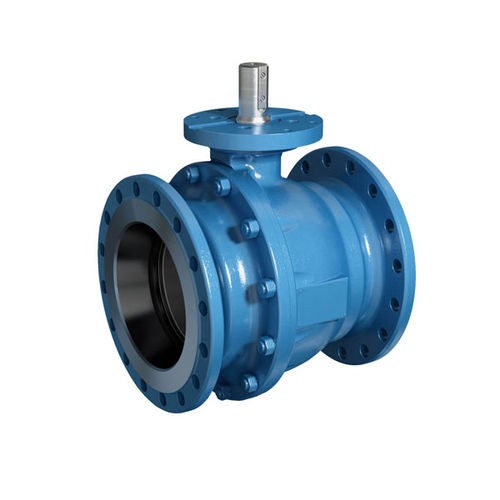

KLINGER BALLOSTAR KHI Two-piece ball valve, flange connection, full bore. Features DN 150 - DN 800 two-piece split body soft seated trunnion mounted ball FTF dimensions acc. to EN 558, GR.12 flanges acc. to EN 1092 full bore KLINGER Ballostar-KHI - 2-piece Ball Valve Ball valve for rough use! For use everywhere reliable functioning is required, where large nominal diameters are used and where minimum pressure loss is essential. KLINGER Ballostar KHI is recommended for petrochemistry, the pulp industry, chemical industry and general plant construction. This is a ball valve with a doubly independent sealing system. By the way: This valve is also acknowleged by the TÜV (German Technical Inspection Association) as a double shut-off device! Product Advantages Bi-directional sealing system - no preferred flow direction Full bore - slightest pressure losses and low costs for pumping Trunnion mounted ball Low operating torque Ballostar ball vakve neets the requirements of EN 488:2011 Installation in any position Easy automation Accessories Regulating disc Drain-, air relief and flushing connections Special Designs Metal seats for abrasive media Certificates and Approvals Confirmation of sealing chamber and double blocking (TRD 601) Type-test approval acc. to EN 161 (automatic shutt-off valves for gas burners and gas appliances) Gas approval (ÖVGW)
